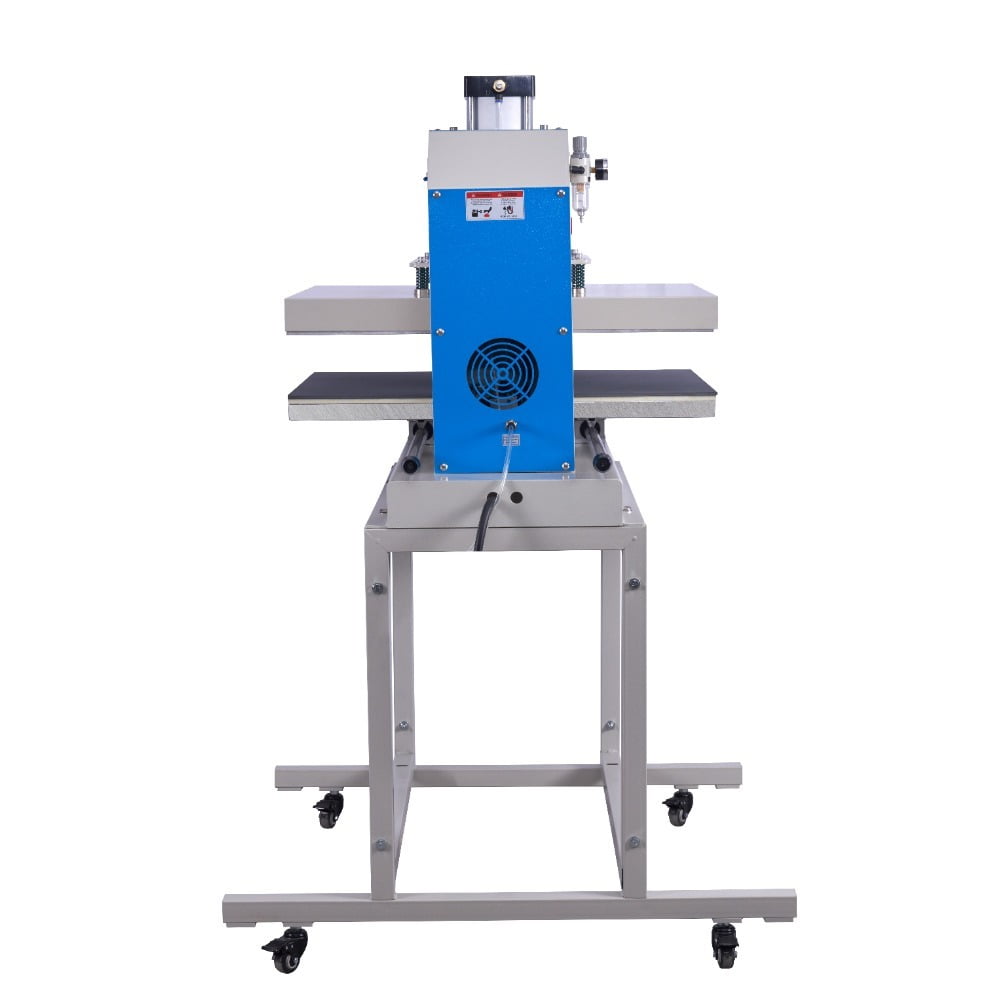

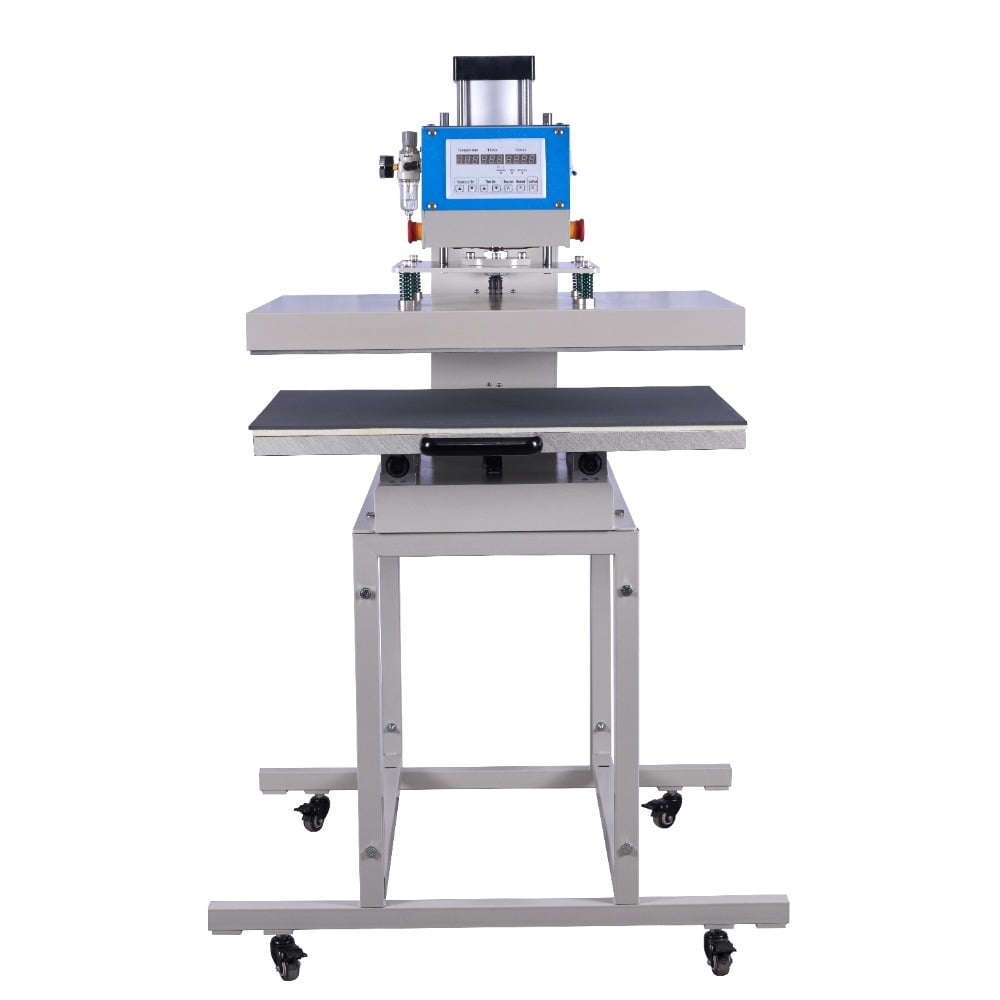

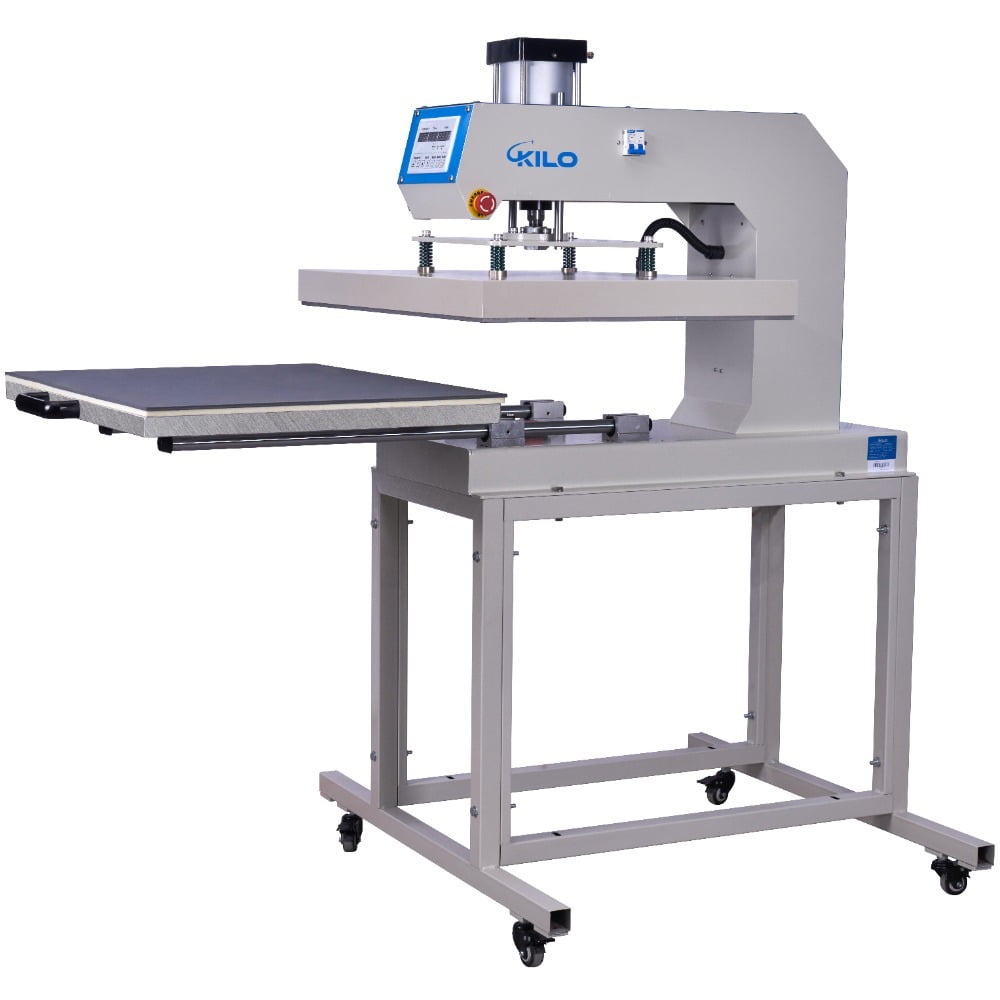

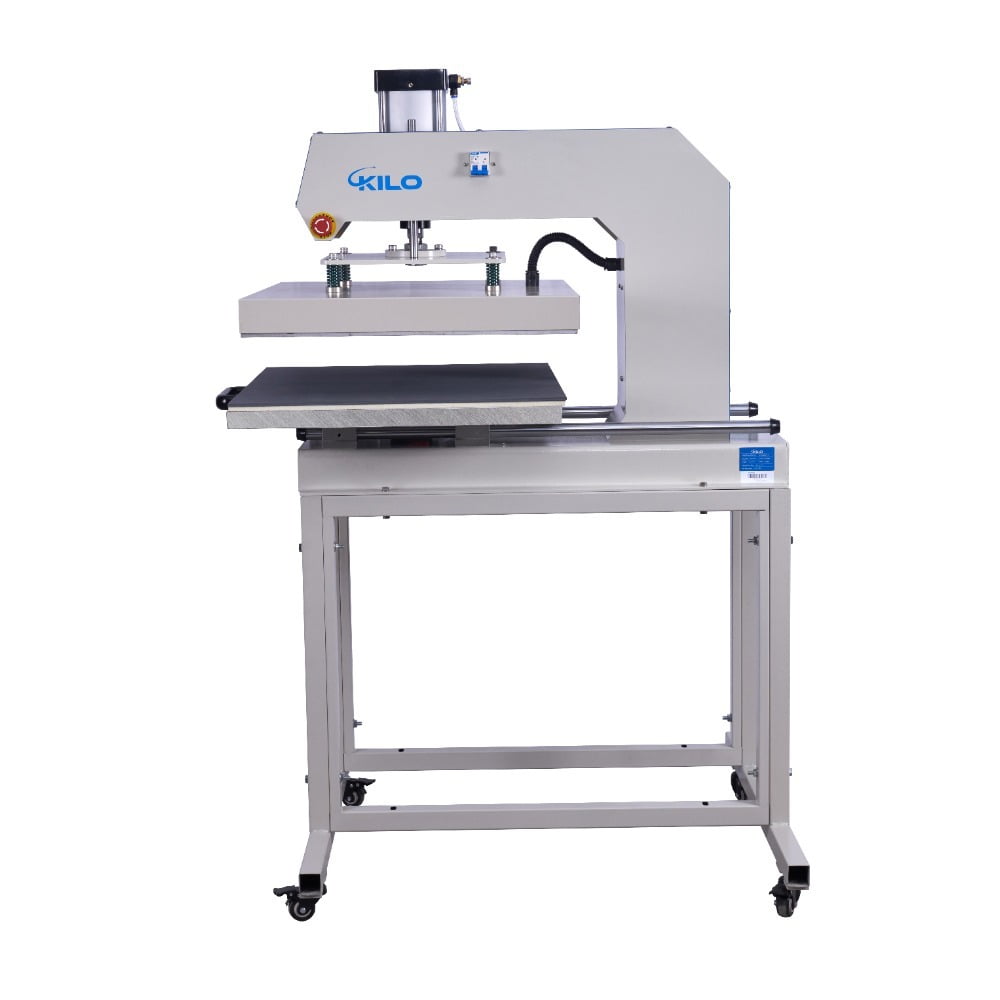

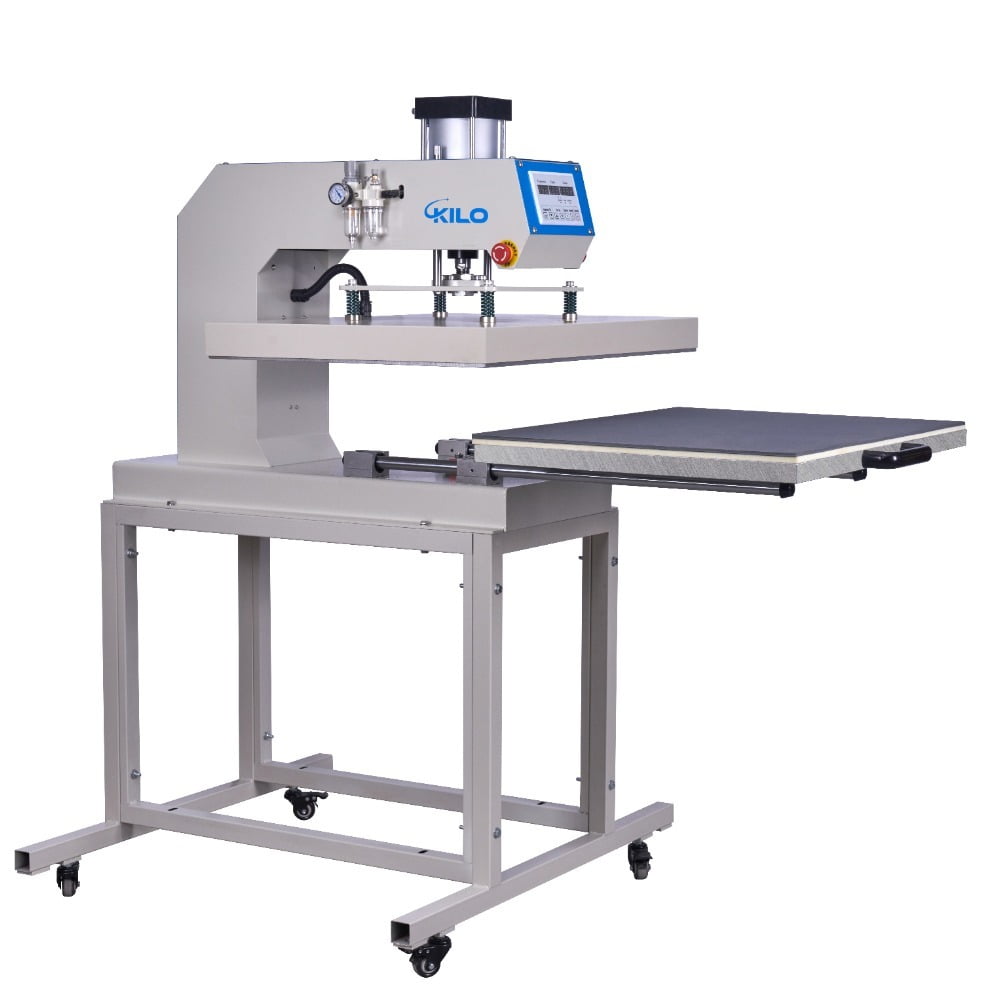

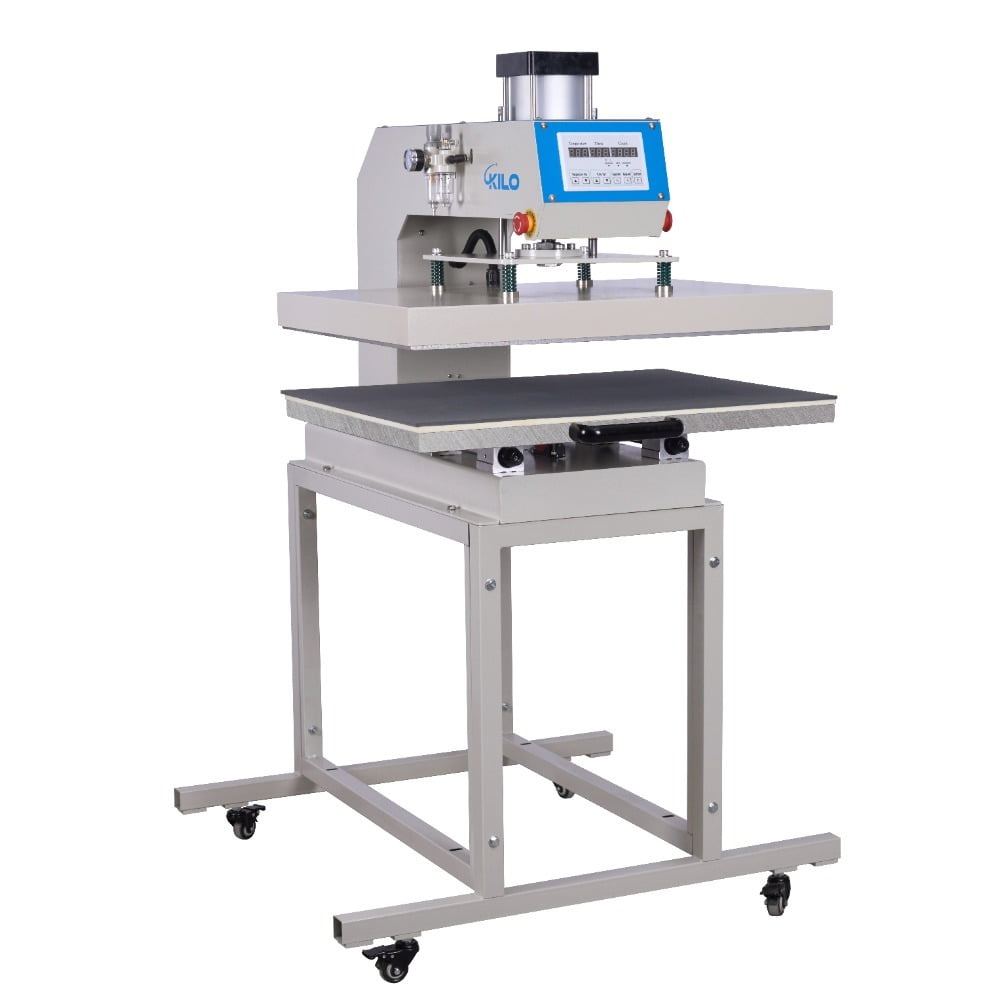

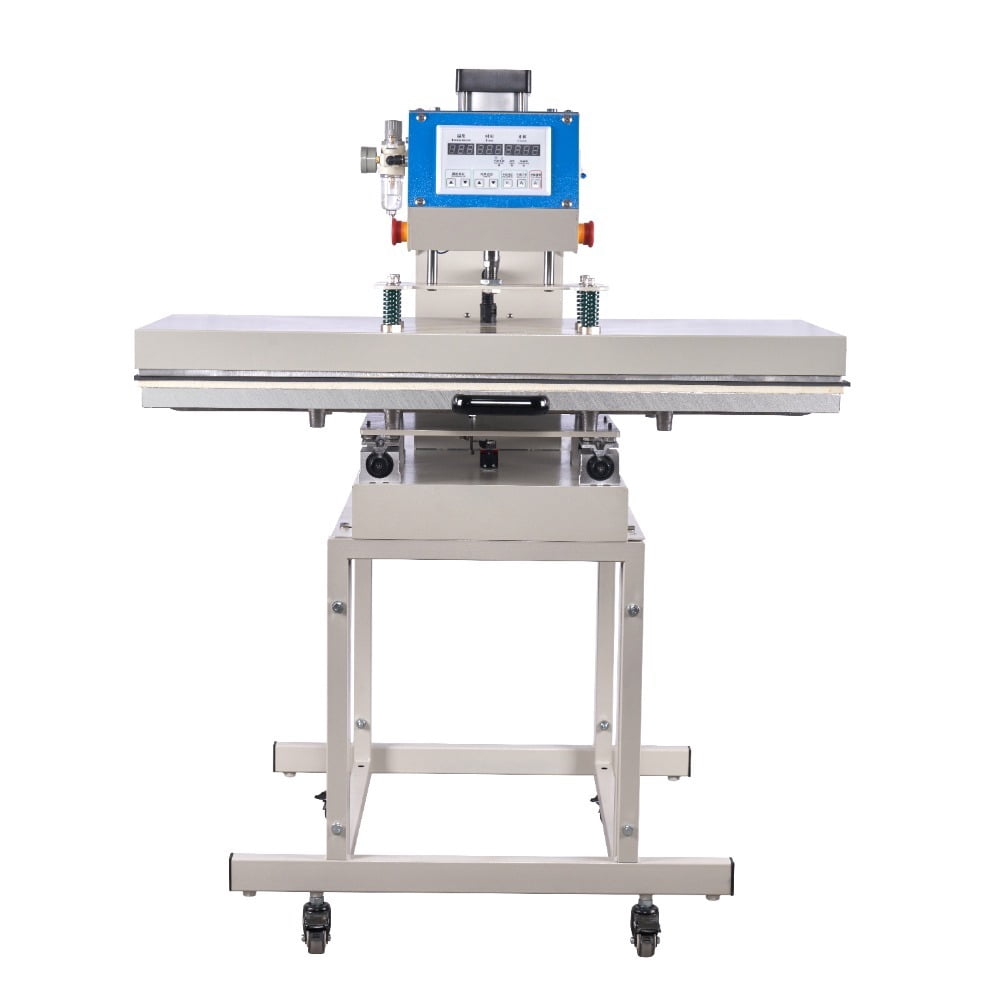

6000W Large Format Single Station Pneumatic Heat Press Machine, 24" x 32" Heat Plate, No Plug, Grey

This advanced heat press machine is designed for high-efficiency and precise heat transfer. It features a full digital integrated display that allows you to control temperature, time, and counting with ease. The machine provides high-accuracy signal indication when the pressing process is completed, ensuring consistent and reliable results. The aluminum heat plate, combined with a die-casting heating pipe, ensures even temperature distribution and quick heating. The integrated design of the heating tube and plate enhances durability and safety. The pressure can be adjusted up to 8kg/cm², and the connected track system makes it stable and easy to slide, increasing efficiency. A special high-temperature cloth covers the machine, and the lower plate is equipped with a 6MM silicon mat and 1CM sponge for even heating pressure. This heat press machine automates the printing process once the backside inductive screw is touched, and the left and right side bearings move parallelly for smooth operation. It operates at a general pressure of 0.4Mpa-0.6Mpa and can be adjusted to different pressures as needed. Powered by an air compressor (not included), this machine is ideal for large format heat pressing tasks.

• • Full Digital Control: Integrated display for temperature, time, and counting.
  • High Accuracy: Precise signal indication when pressing is complete.
  • Even Heating: Aluminum heat plate with die casting heating pipe. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature.
  • Adjustable Pressure: Up to 8kg/cm², with stable and convenient sliding.
  • Automation Ready: Print starts automatically with backside inductive screw.
• Product Specifications:
  • Color: Grey
  • Material: Aluminium
  • Product Dimensions (inches): 40.00L x 32.00W x 58.00H
  • Heat Plate Dimensions (inches): 16.00L x 28.00W
  • Product Weight (lbs): 381.47
  • Voltage (V): 220V single phase
  • Power (KW): 6
  • Temperature (℃): 0~299
  • Delaying Time (S): 1~999
  • Accept Thickness: Max. 2.36'' Thick Items
  • Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
  • Pure Cotton Time: 15s~25s
  • Polyester Time: 40s
  • Chemical Fiber Time: 10s~40s
  • Pearl Board Time: 60s~100s
  • Metal Pendant Time: 60s
  • Mousepad Time: 50s
  • Vitrolite Time: 180s
  • Key Ring Pendant Time: 100s
  • Ceramics Time: 180s
  • Temperature Requirements of Different Materials
  • Pure Cotton: 356℉~428℉ (180℃~220℃)
  • Polyester: 356℉ (180℃)
  • Chemical Fiber: 302℉~356℉ (150℃~180℃)
  • Pearl Board: 356℉ (180℃)
  • Metal Pendant: 356℉ (180℃)
  • Mousepad: 392℉ (200℃)
  • Ceramics: 356℉~428℉ (180℃~220℃)
  • Air Compressor Details: (Need buy extra)
  • F.A.D/Max Pressure(m³/Min/MPa): 2.2/0.8
  • Lubricant Oil (Liter): 10
  • Voltage: 110V/60HZ, 220V/single phase
  • Power (KW): 15
  • Starting Mode: Variable Frequency Start
  • Outer Pipe Diameter (inch): Rp3/4
